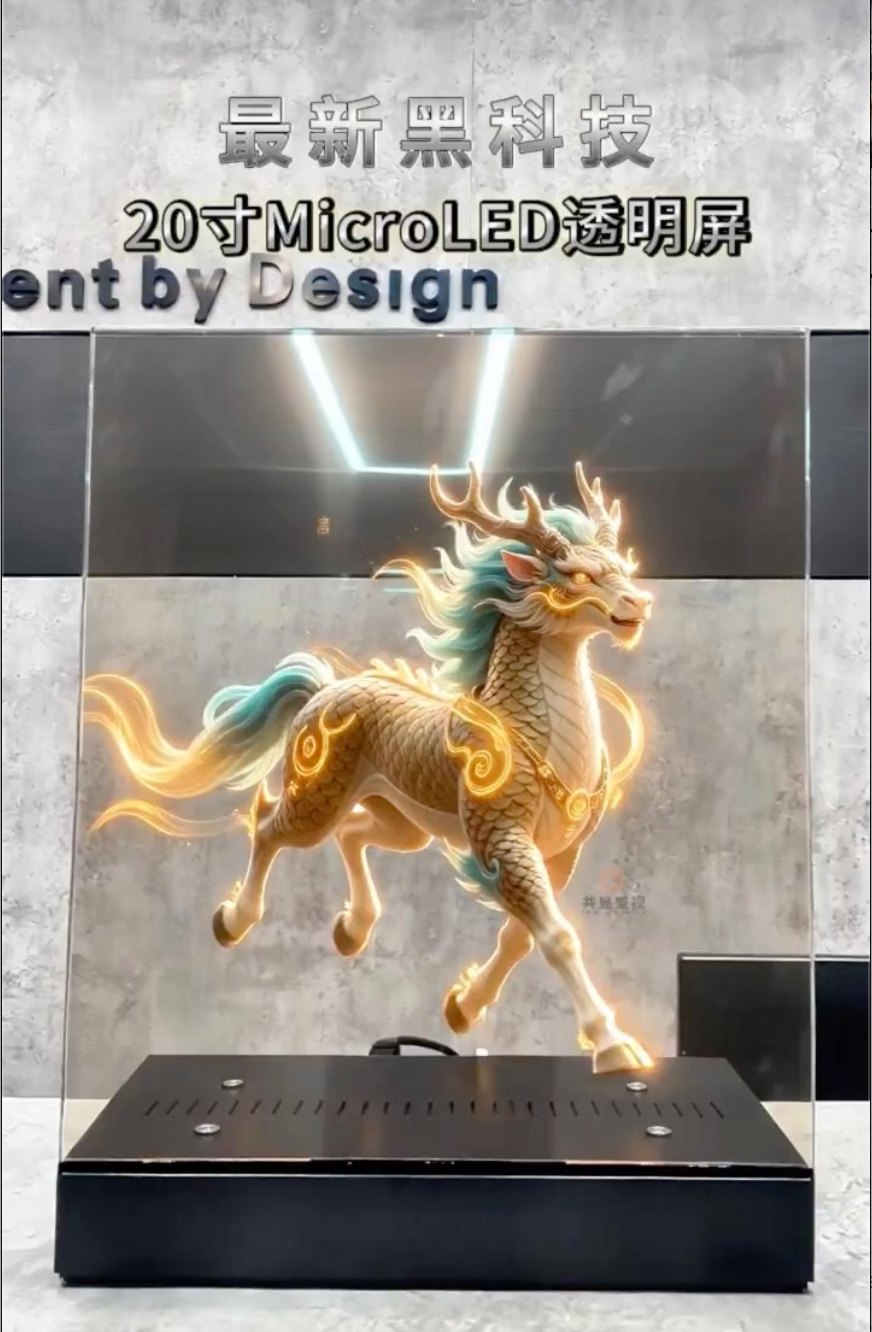

20-Inch Micro LED Transparent Display
Bring digital content and real-world space together with a premium transparent display built on a TFT glass substrate and self-emissive Micro LED technology.
Transparent. Precise. Visually Striking.
Unlike conventional LED displays, this solution combines a TFT glass substrate with Micro LED chips. Every pixel is independently controlled through active-matrix driving for stable images, high contrast and refined visual detail.
The glass-based structure offers excellent dimensional stability and supports a clean, nearly seamless appearance—ideal for premium commercial installations where both transparency and image quality matter.
High Transparency
60% transparency preserves sightlines while adding dynamic digital content.
Active-Matrix Control
Point-to-point pixel control supports stable, smooth and precise visuals.
Ultra-Fine Pitch
P0.692 mm pixel pitch delivers detailed images at close viewing distances.
Flexible Integration
Designed for standalone display use and scalable commercial applications.
Information Required Before Installation
Please provide the installation surface, available space, viewing distance, indoor or outdoor environment, power and data route, quantity, destination country and project timeline.
Pending Company Confirmation
Installation method, packaging contents, lead time, warranty, final interfaces, control method, drawings and maintenance access will be confirmed for each project before quotation or commitment.
20-Inch Transparent Micro LED Display
| Display Size | 20 inches |
|---|---|
| Panel Technology | LTPS-TFT Glass Substrate |
| LED Type | Micro R/G/B Flip-Chip LED |
| Active Area | 334.7 × 430.15 mm |
| Pixel Pitch | P0.692 mm |
| Resolution | 480 × 540 |
| Aspect Ratio | 8:9 |
| Transparency | 60% (without touch) |
| Brightness | 600 nits typical / 1,200 nits peak |
| Color Gamut | NTSC 120% / DCI-P3 98% |
| Viewing Angle | 178° / 178° |
| Contrast Ratio | 1,000,000:1 |
| Refresh Rate | 120 Hz |
| Response Time | < 1 ms |
| Power Consumption | 64 W |
| Input Signal | HDMI / DisplayPort (Daisy Chain) |
| Operating Temperature / Humidity | 0–60°C / 10%–80% |
| LED Lifetime | 100,000 hours |
Designed for High-Impact Spaces
Make Your Space More Visible
Email Vistar Sales with your company, country, application, quantity and project timeline.
